Square regressed recessed light 120-277V : RGR4SQ-CC-V-WH

No Image
Available

Image may not reflect selected features

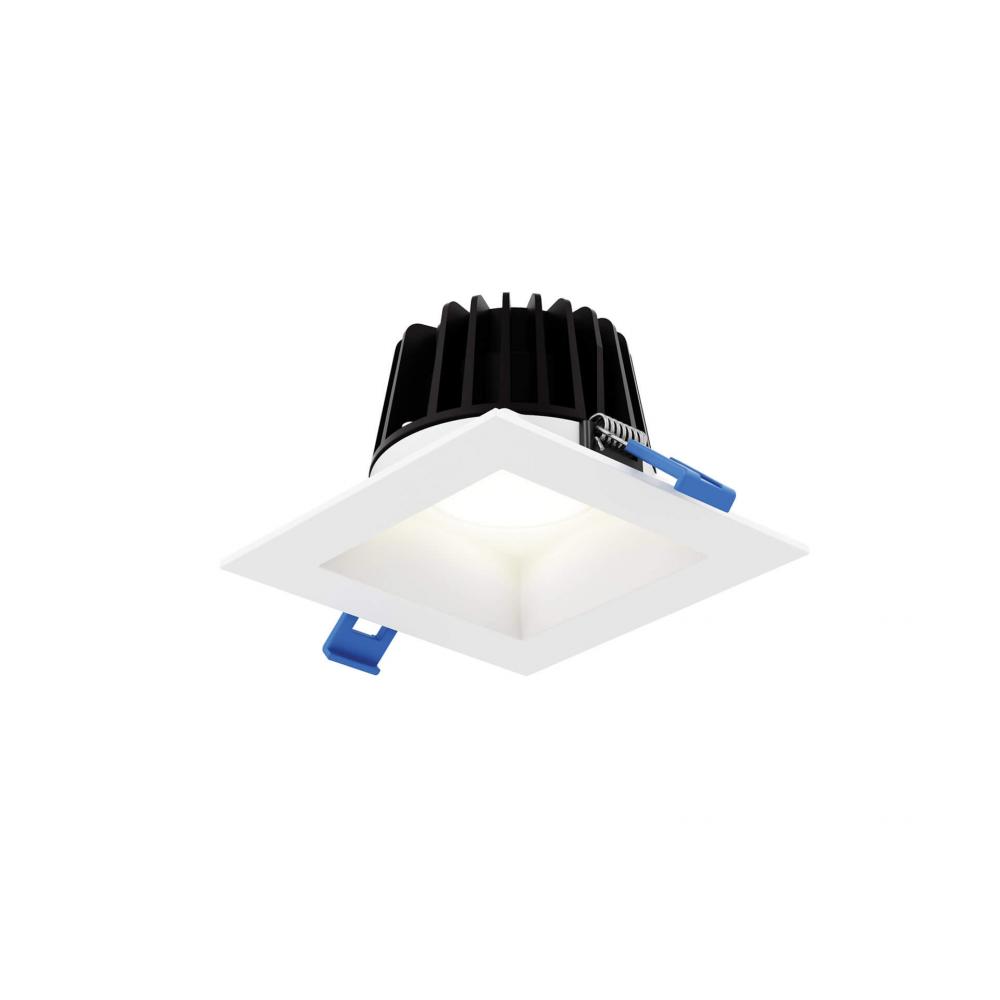

Square regressed recessed light 120-277V (RGR4SQ-CC-V-WH) by Dals

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

Downloads

Click Here to View Installation Sheet

Click Here to View Catalog Sheet

Product Specification

Item #

RGR4SQ-CC-V-WH

Dimensions

Height: 2.75"

Length: 4.50"

Additional product details

Vendor Item #

RGR4SQ-CC-V-WH

Internal #

6Y0UD

Category

Recessed

Subcategory

Regressed

Finish

White

Family

RGR

Voltage

120 V/277 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

12.2/2.54

Ship Carton Length

6.75

Ship Carton Width

6.1

Ship Weight

1.76

Warranty

5 Years Limited

Weight

1.32

Air-Tight (ASTM E283--4)

Yes

Beam Angle

40°

Bulb CRI

Country of Origin

China

Delivered Lumens

1100

Dimmer Type

0-10V

Energy Star

Yes

IC Certification

Yes

Indoor

Yes

JA8

Yes

Lens Material

Plastic

Location Rating

Wet Rated

Max Wattage

14 W/15 W

Maximum Working Temperature

50°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

10.5

Shipping Master Length

18.5

Shipping Master Quantity

Shipping Master Weight

Shipping Master Width

16.5

Title 24

Yes

Wiring

Hardwired

Manufactured By

Dals

Other Details:

40° beam angle
Air-tight certified as per ASTM E283-04
IC certification (suitable for direct contact with insulation)
Suitable for wet locations
Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
